OWASP SecOpsTM

Quick Start / Installation

1. Clone the repository

git clone https://github.com/ellipse2v/SecOpsTM.git
cd SecOpsTM

2. Install Python dependencies

Core installation (threat modeling, diagrams, reports — no AI features):

pip install -e .

With AI features (LLM enrichment, RAG pipeline, GDAF):

pip install -e ".[ai]"

The [ai] extra installs litellm, chromadb, and sentence-transformers. The core tool works fully offline and without these packages — AI features degrade gracefully if not installed or if no LLM provider is reachable.

Note: pip install -e . installs in editable mode — source changes are immediately reflected without reinstalling. Use pip install . for deployment.

3. Install Graphviz (for diagram generation)

• Windows: https://graphviz.org/download/
• macOS: brew install graphviz
• Linux: sudo apt-get install graphviz

After installation, restart your terminal or IDE so that the dot binary is on your PATH.

4. Configure AI providers (optional)

Edit config/ai_config.yaml to enable your preferred LLM provider:

ai_providers:
  - name: gemini
    enabled: true
    model: gemini/gemini-1.5-flash
    api_key_env: GEMINI_API_KEY

  - name: ollama
    enabled: false
    model: ollama/llama3
    api_base: http://localhost:11434

Set enabled: true on the provider you want to use. For cloud providers, set the corresponding API key as an environment variable (e.g., export GEMINI_API_KEY=...). Ollama runs fully offline.

5. Verify the installation

secopstm --model-file threatModel_Template/main.md

A timestamped output folder should appear in output/ with an HTML report and diagrams.

Requirements

• Python 3.8+ (Python 3.10 recommended)
• Graphviz (dot binary on PATH)
• For AI features: pip install -e ".[ai]" + an LLM provider configured in config/ai_config.yaml

Core Analysis

• Markdown-based Threat Modeling: Define your architecture in a simple DSL — Boundaries, Actors, Servers, Dataflows, Data.
• Automated STRIDE Analysis: Detects threats for each element and flow via the PyTM rule engine.
• MITRE ATT&CK + CAPEC + D3FEND mapping: Every threat is mapped to CAPEC attack patterns, ATT&CK techniques, and D3FEND defensive countermeasures — all offline, from local data files.
• CIS Controls + NIST 800-53: Remediation suggestions linked to ATT&CK techniques via local mapping files.
• CVE correlation: CVE definitions link real vulnerabilities to CAPEC patterns and MITRE techniques.
• Severity Calculation: Multi-factor scoring — base score per STRIDE category, protocol adjustments, data classification multipliers, VOC risk signals (CVE match +0.5, high-risk CWE +0.3, network-exposed +0.7, D3FEND mitigations −0.5).

AI-Enhanced Threat Analysis

Three independent threat engines feed into a unified, deduplicated output:

• Multi-provider: Ollama (fully offline), Google Gemini, OpenAI, Mistral, and any LiteLLM-compatible provider. Configured in config/ai_config.yaml.
• Offline-first: The embedding model (all-MiniLM-L6-v2) and the vector store (ChromaDB) run locally. The only outbound traffic is the LLM API call if using a cloud provider.
• Deduplication: When an AI threat and a PyTM threat cover the same (target, STRIDE category) with similar descriptions, the AI version wins — using offline Jaccard word-overlap.
• Trust context in prompts: Each component prompt includes its boundary’s trust level (TRUSTED / UNTRUSTED).
• Boundary-level AI threats: Trust boundaries are included as AI analysis targets for privilege escalation and lateral movement scenarios.
• Cross-model RAG analysis: In project mode, the RAG pipeline receives the full project context (main model + all sub-models) for cross-boundary threat detection.
• Configurable parallelism: Component-level AI enrichment runs concurrently; controlled by max_concurrent_ai_requests in config/ai_config.yaml.

Goal-Driven Attack Flows (GDAF)

GDAF is a top-down attack scenario generator that complements the bottom-up AttackChainAnalyzer. It answers: “What path would a specific adversary take to reach this objective?”

• Objective-driven: Define business-impact objectives (OBJ-DOMAIN-COMPROMISE, OBJ-DATA-EXFIL, etc.) and threat actor profiles in a YAML context file.
• Graph traversal: BFS from actor entry points to target assets across the full architecture graph.
• Per-hop MITRE techniques: Scored from enterprise-attack.json using platform match, tactic relevance, hop position, actor TTPs, and vulnerability signals (no auth, no encryption, legacy).
• Risk scoring: CRITICAL ≥ 4.0 / HIGH ≥ 2.8 / MEDIUM ≥ 1.8 / LOW < 1.8.
• Output: One Attack Flow .afb file per scenario + gdaf_summary.json. Also rendered as a collapsible accordion in the HTML report.
• Fully offline: Only reads enterprise-attack.json from disk.

Reporting & Export

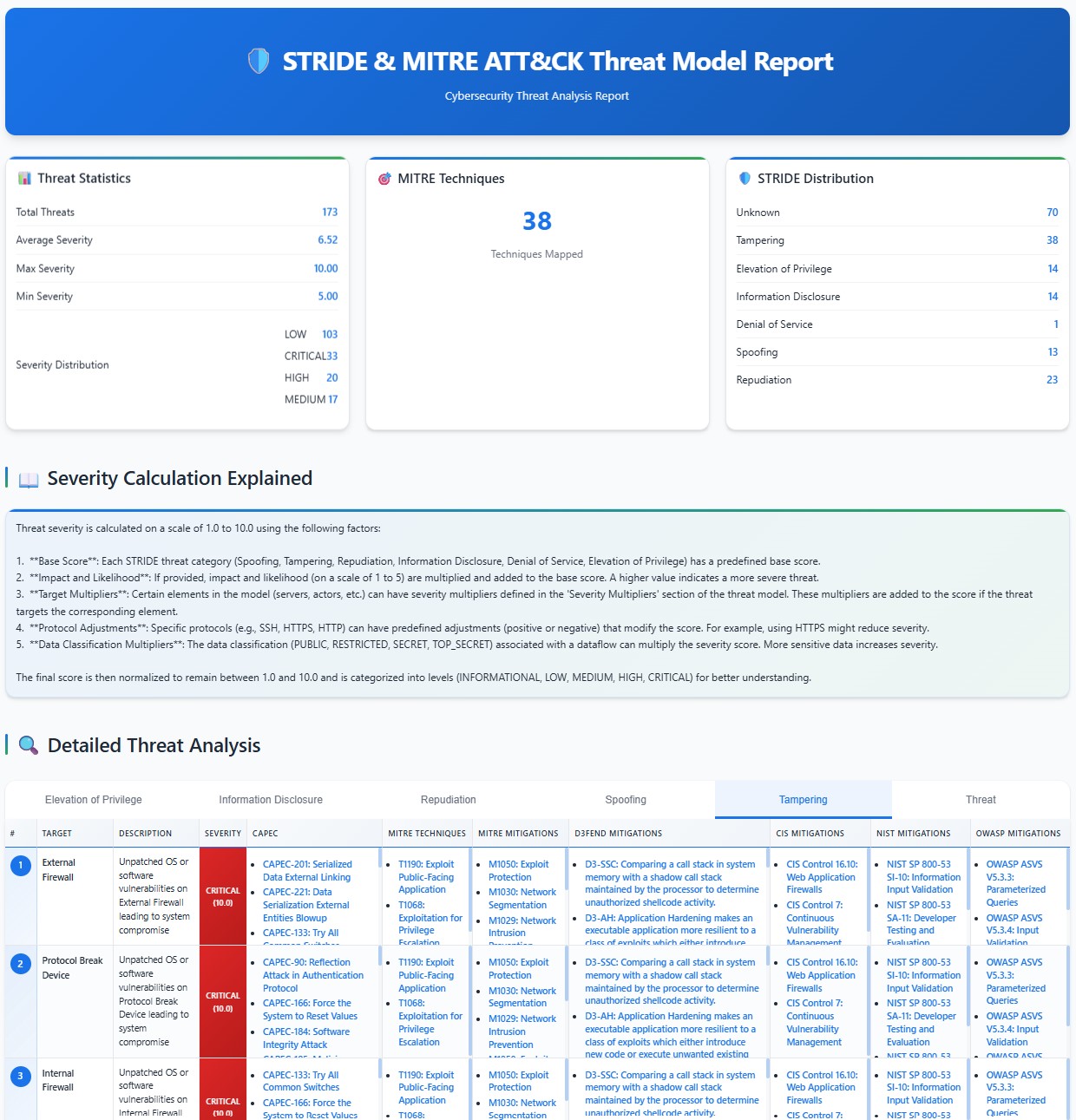

• HTML report: Executive summary (KPIs + top-5 risks), STRIDE distribution, risk matrix 5×5, severity filter, source tagging (pytm / AI / LLM), risk signal badges (CVE, CWE⚠, NET, D3F), D3FEND mitigations.
• ⛓️ Attack Chain Analysis: Multi-step attack paths chaining threats across dataflows, with severity labels.
• GDAF accordion: Goal-driven attack scenarios embedded in the HTML report as a collapsible <details> section.
• Report diff: Compare two JSON exports to track new threats [+], resolved threats [-], and severity changes [~] — available via web UI (/diff) and CLI (secopstm --diff).
• Versioned JSON export (schema_version: "1.0"): Stable structure with threats carrying stable IDs T-NNNN. Schema validated against JSON Schema 2020-12.
• STIX 2.1 bundle and ATT&CK Navigator layer (JSON).
• Attack Flow .afb files for key STRIDE objectives and GDAF scenarios (compatible with the MITRE Attack Flow Builder).
• Remediation Checklist: CSV export of actionable mitigations, one row per threat-technique pair.

Visual Diagrams

• Trust Boundary Colors: Trusted zones rendered green solid, untrusted zones red dashed — baked into the exported SVG.
• Severity Heat Map Overlay: Interactive toggle in HTML diagrams. Applies per-component severity colour (CRITICAL → red, HIGH → orange, MEDIUM → yellow, LOW → teal); hover tooltip links directly to the threat report.
• Sub-model Drill-down: Server nodes with a submodel= reference become hyperlinks in the parent diagram. Clicking opens the child diagram showing internal architecture plus a ghost cluster of external connections (“External connections in” / “External connections out”).

CLI & CI Integration

• secopstm command installed via pip install -e .:

  secopstm --model-file model.md                              # Full analysis
  secopstm --model-file model.md --stdout                     # JSON on stdout
  secopstm --model-file model.md --output-format json --output-file report.json
  secopstm --model-file model.md --output-format stix
  secopstm --diff old_report.json new_report.json             # Compare two reports
  secopstm --server                                           # Launch web editor

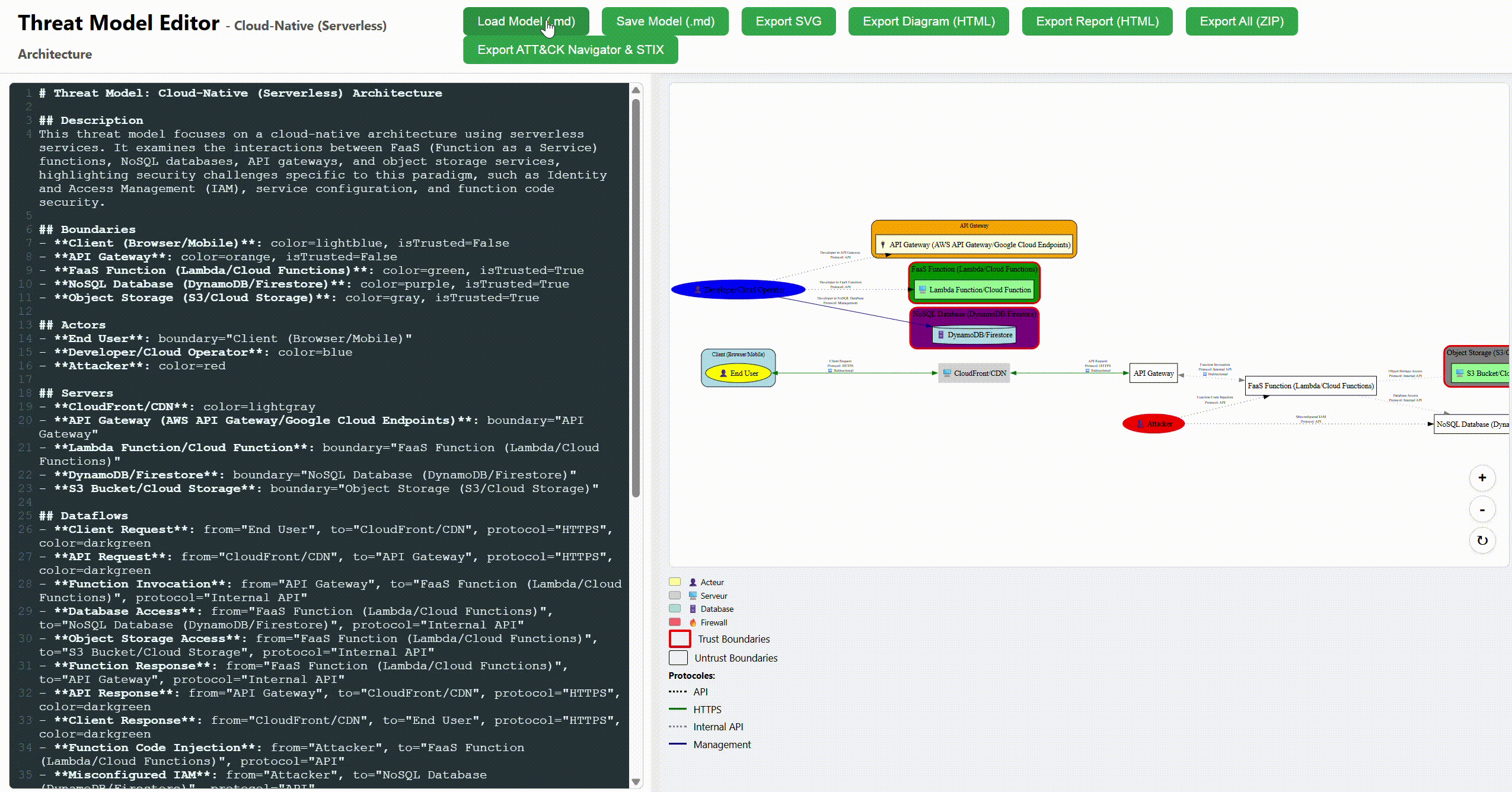

Interactive Web Editor

• Real-time Editing: Live diagram preview that updates as you type.
• DSL Validation: Automatic structural validation banner — red on errors, orange on warnings.
• Severity Heat Map: Toggle applies colour-coded severity overlay; tooltip links to the threat report anchor.
• Project Mode: Tabbed interface for multi-file projects; “Generate All” produces unified, cross-linked reports.
• 📂 Load Project: Directory picker automatically reads all .md files into tabs and detects BOM/ and context/ subdirectories — badges appear and files are sent automatically on generation.
• Graphical Editor: Full drag-and-drop canvas for building models without writing Markdown.

Extensibility

• PyTM Compatibility: Supports PyTM’s model structure and can be extended with PyTM’s features.
• IaC Plugins: Ansible (inventory + playbook parsing). Terraform plugin available (TerraformPlugin) covering 50+ AWS, Azure, and GCP resource types.
• Custom MITRE Mappings: Override or extend the built-in CAPEC→ATT&CK mapping via ## Custom Mitre Mapping in the DSL.
• BOM (Bill of Materials): Per-asset YAML files (BOM/{asset}.yaml) carrying OS version, known CVEs, patch level, and detection level — used to boost CVE scoring and calculate detection coverage in GDAF.
• All mappings and calculations are modular and easy to override.

Command Line Interface (CLI)

After installing with pip install -e ., the secopstm command is available. You can also use python -m threat_analysis — they are 100% equivalent.

Basic usage

# Full analysis — HTML + JSON + SVG + ATT&CK Navigator in output/
secopstm --model-file path/to/model.md

# JSON only, printed to stdout — ideal for CI pipelines and SIEM ingestion
secopstm --model-file model.md --stdout

# JSON to a specific file
secopstm --model-file model.md --output-format json --output-file report.json

# STIX 2.1 bundle only
secopstm --model-file model.md --output-format stix

# Include Attack Flow .afb files for key STRIDE objectives
secopstm --model-file model.md --attack-flow

# Launch the web editor
secopstm --server

# Launch with a specific model pre-loaded
secopstm --server --model-file path/to/model.md

# Launch with an entire project
secopstm --server --project path/to/my_project/

Output artifacts

Every run generates a timestamped folder in output/ containing:

Comparing reports (diff)

secopstm --diff old_report.json new_report.json

Output (one line per difference, suitable for CI):

[+] T-0042 HIGH   SQL Injection on DatabaseServer (Tampering)
[-] T-0017 MEDIUM Unencrypted traffic on API Gateway (Information Disclosure)
[~] T-0005 LOW → HIGH Privilege escalation on WebServer (Elevation of Privilege)

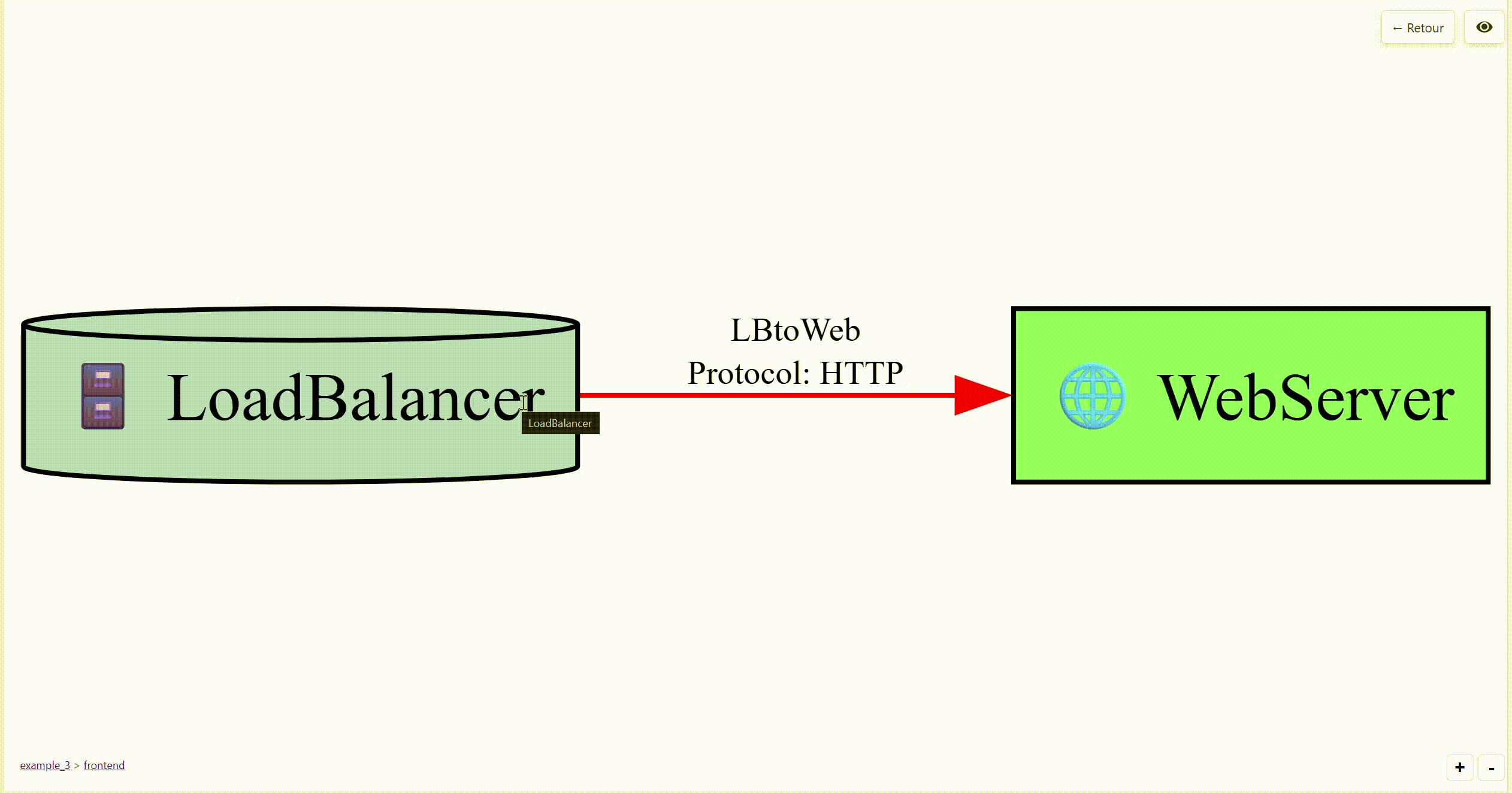

Project Mode: Hierarchical Threat Models

For complex projects with multiple nested threat models, organize a directory with a main.md at the root and sub-models in sub-directories. The recommended workflow uses the web UI; the CLI mode is also available:

secopstm --server --project path/to/my_project/

Or from CLI only:

python -m threat_analysis --project path/to/my_project/

Sub-models are linked from main.md using the submodel= attribute on a server definition:

## Servers
- **Backend Services**: boundary="Internal", submodel=backend/model.md

The parent diagram renders Backend Services as a hyperlink. The child diagram shows its internal architecture plus ghost nodes for external connections from the parent.

IaC Integration (Ansible)

Generate a complete threat model directly from an Ansible playbook:

secopstm --ansible-path path/to/playbook.yml

The generated Markdown model is saved in output/ and processed immediately.

CVE-Based Scoring (Optional)

Create a cve_definitions.yml in the model directory:

WebServer:
  - CVE-2021-44228   # Log4Shell
DatabaseServer:
  - CVE-2022-5678

The tool automatically loads this file. CVEs are mapped to CAPEC attack patterns and influence STRIDE threat severity scoring.

REST API (JSON export)

The /api/export_json endpoint returns the versioned JSON report without generating files — ideal for SIEM connectors:

# Count CRITICAL threats — fail the CI build if any are present
CRITICAL=$(curl -s -X POST http://localhost:5000/api/export_json \
  -H "Content-Type: application/json" \
  -d '{"markdown_content": "..."}' | jq '[.threats[] | select(.severity=="CRITICAL")] | length')

if [ "$CRITICAL" -gt 0 ]; then
  echo "Build blocked: $CRITICAL CRITICAL threat(s) found."
  exit 1
fi

Web-based User Interface (Server Mode)

The interactive web editor runs on a local server and offers two distinct modes:

# Start with an empty editor
secopstm --server

# Start with a specific model pre-loaded
secopstm --server --model-file path/to/model.md

# Start with an entire project (recommended for multi-model work)
secopstm --server --project path/to/my_project/

Open http://127.0.0.1:5000 in your browser. A central menu lets you choose between two modes.

Simple Mode

An interface for editing and visualizing threat models described in Markdown.

Features

• Monaco editor with syntax highlighting and DSL validation — a banner below the editor updates 800 ms after each keystroke, turning red on structural errors and orange on warnings.
• Live diagram preview: The architecture diagram updates in real time as you type.
• Tabbed interface: When a project is loaded, every model file opens in its own tab.
• Sub-model navigation: Server nodes with a submodel= reference are clickable hyperlinks in the diagram, navigating to the child model’s diagram.
• Severity heat map toggle: Applied in the diagram HTML — colour-codes each component by its highest threat severity. Hovering shows a tooltip with the severity level and a deep link to the threat report.

Project workflow

1. Launch the server with --project path/to/project to open all models automatically.
2. Or click “📂 Load Project” in the browser to use a directory picker:
   • All .md files are opened into editor tabs.
   • BOM/ and context/ subdirectories are detected automatically.
   • BOM ✓ and Context ✓ badges appear next to the button when found.
3. Click “Generate All” to produce the full unified, cross-linked report for the project. BOM and context files are sent to the server automatically — no manual path configuration required.

Generate All

The “Generate All” button produces a complete artifact bundle:

• HTML report (with attack chains, GDAF scenarios, severity heat map)
• Versioned JSON export
• SVG diagram (trust boundary colors) + interactive HTML diagram
• STIX 2.1 bundle + ATT&CK Navigator layer
• Attack Flow .afb files
• GDAF attack scenarios (when a context YAML is present)

Graphical Editor

A full-featured canvas for building threat models visually — no Markdown required.

• Drag-and-drop toolbar: add Actors, Servers, Boundaries, Dataflows.
• Properties panel: edit element attributes directly.
• Export all artifacts without writing a single line of DSL.

Report Diff Page (/diff)

Compare two versioned JSON exports in the browser:

1. Open http://127.0.0.1:5000/diff.
2. Paste or upload two JSON report files (older on the left, newer on the right).
3. The page shows counts by category and a line per difference:
   • [+] New threats introduced
   • [-] Threats resolved or removed
   • [~] Threats whose severity changed

Threat Model DSL

Threat models are defined in a simple Markdown DSL. Each section corresponds to an architectural concept. The parser is 2-pass: elements first, then relationships.

Minimal example

# Threat Model: My Application

## Description
A web application with a backend database.

## Boundaries
- **Internet**: is_trusted=False, color=lightcoral
- **Internal**: is_trusted=True, color=lightgreen

## Actors
- **User**: boundary=Internet

## Servers
- **WebApp**: boundary=Internet, internet_facing=True
- **Database**: boundary=Internal

## Data
- **User Credentials**: classification=confidential, lifetime=long_lived

## Dataflows
- **User to WebApp**: from="User", to="WebApp", protocol="HTTPS", is_encrypted=True, is_authenticated=True
- **WebApp to Database**: from="WebApp", to="Database", protocol="PostgreSQL", data="User Credentials", is_encrypted=True

## Protocol Styles
- **HTTPS**: color=darkgreen, line_style=solid
- **PostgreSQL**: color=royalblue, line_style=dashed

## Severity Multipliers
- **Database**: 2.0

DSL Section Reference

## Boundaries

## Actors

## Servers

## Data

## Dataflows

## Context (optional, for GDAF and BOM)

## Context
- gdaf_context = context/threat_context.yaml
- bom_directory = BOM/

Sub-model Drill-down

A server node can reference a child model file:

## Servers
- **Backend Services**: boundary="DMZ", submodel=backend/model.md, entry_point=False

## Servers
- **API Gateway**: boundary="DMZ", entry_point=True

The parent diagram renders Backend Services as a hyperlink to the child diagram. The child diagram shows the server’s internal architecture plus a “ghost” cluster of external connections from the parent:

• External connections in (parent model) — traffic arriving from the parent
• External connections out (parent model) — traffic leaving to the parent

Use entry_point=True on the server in the child model that receives external traffic. This tells the diagram generator which node to wire the ghost connections to.

Protocol Styles and Legends

Define protocol styles to control diagram colors and make protocols appear in the legend:

## Protocol Styles
- **HTTPS**: color=darkgreen, line_style=solid
- **HTTP**: color=red, line_style=solid
- **SSH**: color=steelblue, line_style=dashed
- **gRPC**: color=purple, line_style=dotted

Protocols used in dataflows but not defined here are drawn with a default style and do not appear in the legend.

BOM (Bill of Materials)

Per-asset YAML files in a BOM/ subdirectory carry operational data that enriches threat scoring:

# BOM/WebApp.yaml
asset_name: WebApp
os: Ubuntu 22.04
patch_level: current
known_cves:
  - CVE-2023-44487    # HTTP/2 Rapid Reset
detection_level: medium   # low / medium / high

BOM known_cves are added to the CVE scoring pipeline, influencing threat severity. detection_level is used to calculate GDAF detection coverage.

GDAF Context YAML

For goal-driven attack scenario generation, provide a context file referenced from ## Context:

attack_objectives:
  - id: OBJ-DATA-EXFIL
    name: "Customer Data Exfiltration"
    business_impact: "GDPR breach, financial loss"
    target_asset_names: ["Database"]
    target_types: ["database"]

threat_actors:
  - id: TA-EXTERNAL
    name: "External Attacker"
    sophistication: intermediate
    entry_preference: internet-facing
    known_ttps: ["T1190", "T1059"]

risk_criteria:
  max_hops: 6
  max_paths_per_objective: 3

Custom MITRE Mapping

Override or extend the built-in CAPEC→ATT&CK mapping:

## Custom Mitre Mapping
- **Protocol Tampering**: tactics=["Impact", "Defense Evasion"], techniques=[{"id": "T1565", "name": "Data Manipulation"}]

Templates

Ready-to-use model templates are available in threatModel_Template/:

Report Artifacts

Every analysis run generates a timestamped folder in output/ containing:

HTML Report (stride_mitre_report.html)

The HTML report includes:

• Executive Summary: Total threats, CRITICAL / HIGH / MEDIUM / LOW counts, top-5 risks by score, STRIDE distribution chart.
• Risk Matrix: 5×5 likelihood × impact heat map.
• Severity Filter: Interactive buttons to filter threats by severity level.
• Threat Table: One row per threat with ID (T-NNNN), description, target, STRIDE category, source tag (pytm / AI / LLM), severity badge, MITRE techniques, D3FEND countermeasures, CIS controls, NIST 800-53 controls, and risk signal badges (CVE, CWE⚠, NET, D3F).
• ⛓️ Attack Chain Analysis: Multi-step attack paths chaining threats across dataflows, showing entry point → pivot → target with severity and score.
• Goal-Driven Attack Scenarios (GDAF): Collapsible accordion showing adversary simulations from objectives to hop-by-hop MITRE techniques (only present when a context YAML was provided).
• Severity Calculation Explained: Methodology and scoring weights.

Architecture Diagrams

• tm_diagram.svg: Architecture diagram with trust boundary colors:
  • Trusted zones: green solid border (#2e7d32)
  • Untrusted zones: red dashed border (#c62828)



• tm_diagram.html: Interactive HTML diagram with:
  • Severity heat map toggle: Colours each node by its highest threat severity. Hover to see severity + a link to the threat anchor in the HTML report.
  • Protocol legend with colour coding.
  • Sub-model hyperlinks (click a server with submodel= to drill down).

JSON Export (mitre_analysis.json)

Versioned JSON (schema_version: "1.0") with stable threat IDs (T-NNNN):

{
  "schema_version": "1.0",
  "analysis_date": "2026-03-21T10:00:00",
  "model_name": "My Application",
  "threats": [
    {
      "id": "T-0001",
      "description": "SQL injection on Database",
      "target": "Database",
      "stride_category": "Tampering",
      "severity": "HIGH",
      "score": 7.8,
      "source": "AI",
      "mitre_techniques": [{"id": "T1190", "name": "Exploit Public-Facing Application"}],
      "d3fend_mitigations": ["D3-SQLCA"],
      "risk_signals": {"cve_match": true, "network_exposed": true}
    }
  ]
}

Schema validated against threat_analysis/schemas/v1/threat_model_report.schema.json. Stable IDs enable SIEM deduplication and CI gate comparisons.

Other Exports

Project Mode

For multi-model projects, a unified navigable HTML report is generated at the root of the output folder. Sub-model reports are in corresponding sub-directories, with all links adjusted automatically.

MITRE ATT&CK Navigator Integration

Roadmap

Recently Completed ✅

• AI threat enrichment — LiteLLM + RAG pipeline (ChromaDB + HuggingFace embeddings), fully offline with Ollama.
• Goal-Driven Attack Flows (GDAF) — top-down adversary simulation from objectives to MITRE-technique-annotated hop chains, exported as Attack Flow .afb files.
• Attack Chain Analysis — bottom-up multi-step attack path identification across dataflows.
• Trust Boundary Colors — trusted (green) / untrusted (red) boundary rendering baked into SVG exports.
• Severity Heat Map — interactive toggle in HTML diagrams with per-component colour coding and report deep-links.
• Sub-model Drill-down — submodel= attribute on servers; parent/child diagram navigation with ghost connections.
• Versioned JSON Schema (schema_version: "1.0", stable IDs T-NNNN) — validated against JSON Schema 2020-12.
• Report Diff — compare two JSON exports via web UI (/diff) or CLI (secopstm --diff).
• secopstm CLI — --output-format, --stdout, --diff flags; pip install -e ".[ai]" for AI extras.
• BOM (Bill of Materials) — per-asset YAML files feeding CVE scoring and GDAF detection coverage.
• Terraform IaC plugin — 50+ AWS, Azure, and GCP resource types.
• CVE + CWE scoring — VOC risk signals adjusting STRIDE base severity.
• Parallel AI enrichment — configurable concurrency per component.

In Progress 🔄

• Terraform CLI integration — the TerraformPlugin is implemented; CLI flag (--terraform-path) is pending.
• Integration tests for Attack Flow generator — current coverage is thin.
• Unit tests for AttackChainAnalyzer, ThreatConsolidator, and ReportSerializer.

Planned 📋

• CloudFormation IaC plugin — AWS CloudFormation template parsing.
• Kubernetes / Helm IaC plugin — workload and network policy parsing.
• Threat model diff in the web UI — visual side-by-side comparison with component highlighting.
• ML-enhanced threat identification — using embeddings to predict threats for novel architectures not covered by PyTM rules.
• Fine-tuned LLM — domain-specific model fine-tuned on STRIDE + MITRE data for higher accuracy without RAG.
• GDAF integration tests — automated coverage for the full GDAF pipeline.
• Multi-user web UI — authentication and project isolation for team use.

Tooling Scripts

Scripts in the tooling/ directory handle one-time data acquisition, transformation, and quality assurance. They are not part of the runtime — all artifacts they produce are committed to the repository so that the tool works fully offline without running them again.

build_vector_store.py

Purpose: Builds the ChromaDB vector store used by the RAG threat generation pipeline.

Process:

1. Loads all security knowledge from threat_analysis/external_data/ (CAPEC XML, ATT&CK JSON, CVE JSONL, D3FEND CSV, CIS XLSX, NIST XLSX).
2. Splits documents with RecursiveCharacterTextSplitter.
3. Generates embeddings with HuggingFaceEmbeddings (all-MiniLM-L6-v2 — runs locally, no API key needed).
4. Persists the vector store to threat_analysis/vector_store/.

Usage: Run once after cloning, or after updating any external_data/ files. Requires pip install -e ".[ai]".

python tooling/build_vector_store.py

build_stride_capec_mapping.py

Purpose: Builds stride_to_capec.json — maps STRIDE categories to CAPEC attack pattern IDs.

Process: Applies manual corrections and supplemental mappings from hardcoded dictionaries, then writes to threat_analysis/external_data/stride_to_capec.json.

Usage: Run when the STRIDE→CAPEC mapping needs to be updated.

capec_to_mitre_builder.py

Purpose: Creates capec_to_mitre_structured_mapping.json — bridges CAPEC patterns to MITRE ATT&CK techniques.

Process:

1. Downloads CAPEC data in CSV format from mitre.org.
2. Parses CSV to extract CAPEC ID, name, and linked ATT&CK techniques.
3. Falls back to web scraping if CSV is incomplete.
4. Adds hardcoded manual mappings.
5. Saves to threat_analysis/external_data/.

Usage: Run periodically to keep the mapping current.

capec_mitre_parser.py

Purpose: Ad-hoc web scraper for researching specific CAPEC entries and MITRE ATT&CK techniques.

Usage: Research and verification tool — not part of the automated pipeline.

cis_controls_parser.py

Purpose: Parses the CIS Controls v8 to MITRE ATT&CK mapping Excel file into cis_to_mitre_mapping.json.

Usage: Run if the source Excel file (CIS_Controls_v8_to_Enterprise_ATTCK_v82_Master_Mapping__5262021.xlsx) is updated.

download_attack_data.py

Purpose: Downloads the CAPEC CSV (CAPEC_VIEW_ATT&CK_Related_Patterns.csv) from capec.mitre.org.

Usage: Data acquisition — run when updating the CAPEC data source.

download_nist_data.py

Purpose: Downloads nist800-53-r5-mappings.xlsx from the Center for Threat-Informed Defense GitHub repository.

Usage: Run when the NIST 800-53 mapping needs to be refreshed.

copy_cve_data.py

Purpose: Copies the CVE-to-CAPEC database from an external CVE2CAPEC repository into threat_analysis/external_data/cve2capec/.

Usage: Run after cloning the CVE2CAPEC repository next to the SecOpsTM directory.

validate_capec_json.py

Purpose: Quality assurance — validates the local stride_to_capec.json against the official MITRE CAPEC website.

Process: Scrapes official CAPEC pages and compares descriptions with the local JSON, printing a mismatch report.

Usage: Run after build_stride_capec_mapping.py to detect data drift.

generate_attack_flow.py

Purpose: Helper library for constructing .afb files compatible with the Attack Flow Builder.

Usage: Used internally by AttackFlowGenerator and AttackFlowBuilder. Does not perform analysis on its own.

test_rag_generation.py

Purpose: Manual smoke test for the RAG pipeline — queries the vector store and calls the configured LLM to verify end-to-end threat generation.

Usage: Run after building the vector store and configuring an LLM provider, to verify the RAG chain works.

python tooling/test_rag_generation.py
